README.md Overview SDS (Suzuki Diagnostics System) is a KWP-2000 (sometimes known as K-Line or ISO-14230) protocol running at 10,400 baud/8n1. While the ISO spec covers the physical signaling and general protocol, the actual messages and their meaning are left up to the manufacturer to define and impliment.
The result is that different manufacturers end up writing incompatible protocols and that even for a given manufacturer, the protocol may differ for different vehicles. The result is that while AiM can decode the SDS protocol for the Suzuki GSXR, it can only do a medicore job of doing so for the 03-05 SV650. The goal of this project is to reverse engineer and document the 03-05 SV650 protocol and develop some tools to make reverse engineering other vehicles easier.
Diagnostic Tool Quickbooks
Tools I have the following tools available to me:. Cheap chinese clone of the 'HealTech' Suzuki Diagnostic Tool (SDT) off eBay. Teensy 2.0 + STL9637D K-Line interface. OpenBench Logic Sniffer + OLS Logic Sniffer By using a simple voltage divider using a 33k and 10k resistor, I was able to drop the 12V signal of the K-Line to something the was able to process. Using 50kHz sampling rate and setting a trigger to look for 0x80, I'm able to capture the initial 25ms handshake between the SDT and. By using the UART Analyser built in to, I was able to generate a with all the communications. Next step is to build a suite of tools to clean up the data (OLS puts some binary characters in the CSV) and to do some basic decoding of the messages to figure out:.
Build high-speed and highly scalable telephony systems using OpenSIPS. Code, downloads, and PacktLib. Goncalves Bogdan-Andrei Iancu. Telephony and Linux experience will be helpful to get the most out of this book but are not essential. Prior knowledge of OpenSIPS is not assumed. What you will learn from this book. Building Telephony Systems with OpenSIPS Second Edition. ' Packt Publishing Building Telephony Systems with OpenSIPS 1 6 '. Nombre de Archivo: ' Packt Publishing Building Telephony Systems with OpenSIPS 1 6.pdf' Size: '4.33 MB'. Download Building Telephony Systems with OpenSIPS 1 6 PDF free. Building telephony systems with opensips pdf download. Building Telephony Systems with OpenSIPS 1.6. Build scalable and robust telephony systems using SIP. Flavio E.Goncalves. BIRMINGHAM - MUMBAI. This material is. SIP and OpenSIPS became a key factor in the VoIP world along the year—telephony providers. Downloading and installing OpenSIPS v1.6.x.

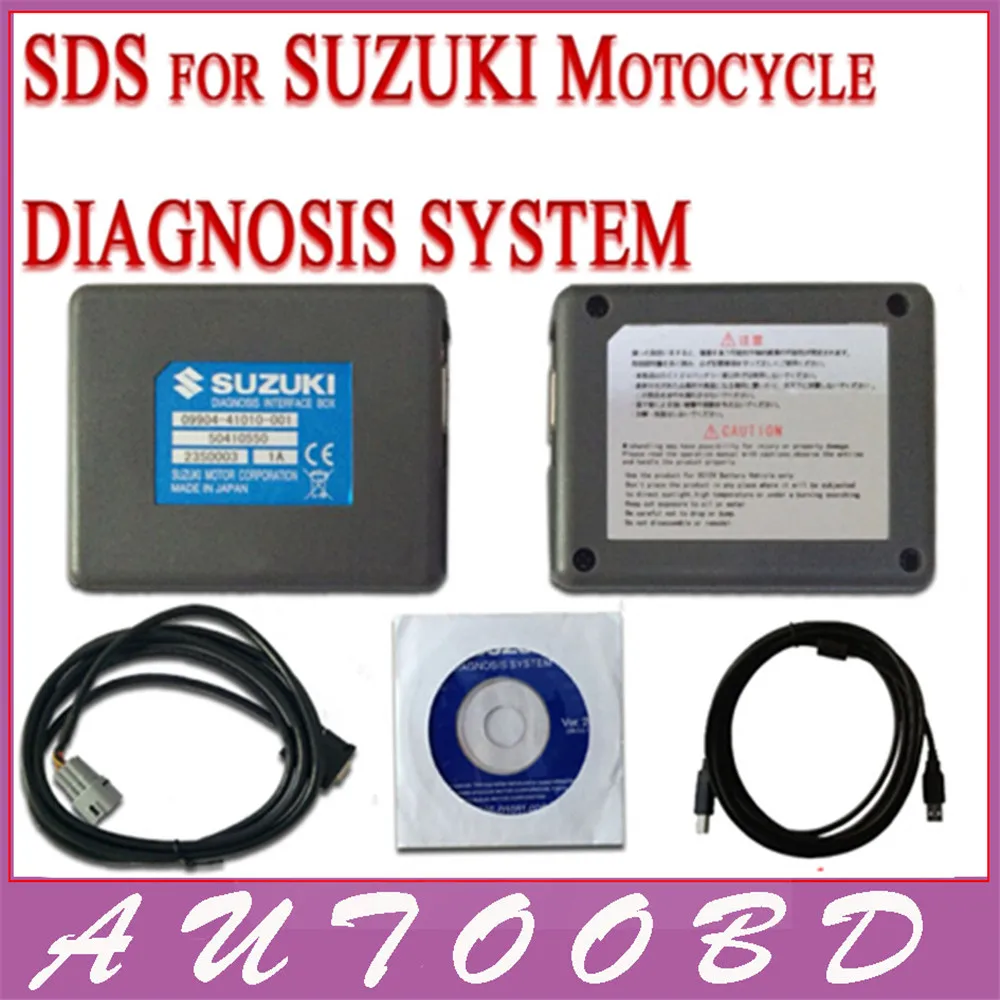

Suzuki Sds Diagnostic Tool Kit
Decode header to determine if sender is ECU or SDT. Decode payload bytes. Build a lookup table to map payload values to something meaningful. Convert payload to useful messages Ended up abandoning this method as the small capture window made things too difficult. Teensy + STL9637D Using a simplified version of the code from here: I was able to validate that the Teensy/STL9637D can communicate to the bike. Connecting the two is pretty straight forward (just need +12V, GND and the K-Line off the bike), but you need to remember a 500-1k pull up resistor on the K-Line. Ended up abandoning this method because doing all the decoding on the Teensy using Processing was not efficient enough.
Teensy + Python After a while, I realized that trying to iterate over decoding the protocol directly on the Teensy was really painful. I wanted a way to:. Write code in a higher level language like Python.
Easily save the raw data to disk and use that for apples-to-apples comparison of different versions of the protocol decoder The result is dumbing down the Teensy code so it just handles the framing and a new Python script to process the messages. This has turned out to be much more powerful and easier to iterate over then writing in Processing and reprogramming the Teensy each time (duh!). The only challenge really is that the commercial SDS tool won't export timestamped records. This means I have to manually align messages which sucks. I'm probably going to have to come up with a way to insert my own marks into the data stream for alignment purposes- probably using the gear position sensor since that is easy to locate in the data stream, written raw and should be easy to manipulate/create a test harness for. The result is I've using KiCad to do just that.
External References Most of these links provide background to the KWP-2000 protocol and should help understand what is actually going on in the wire.
